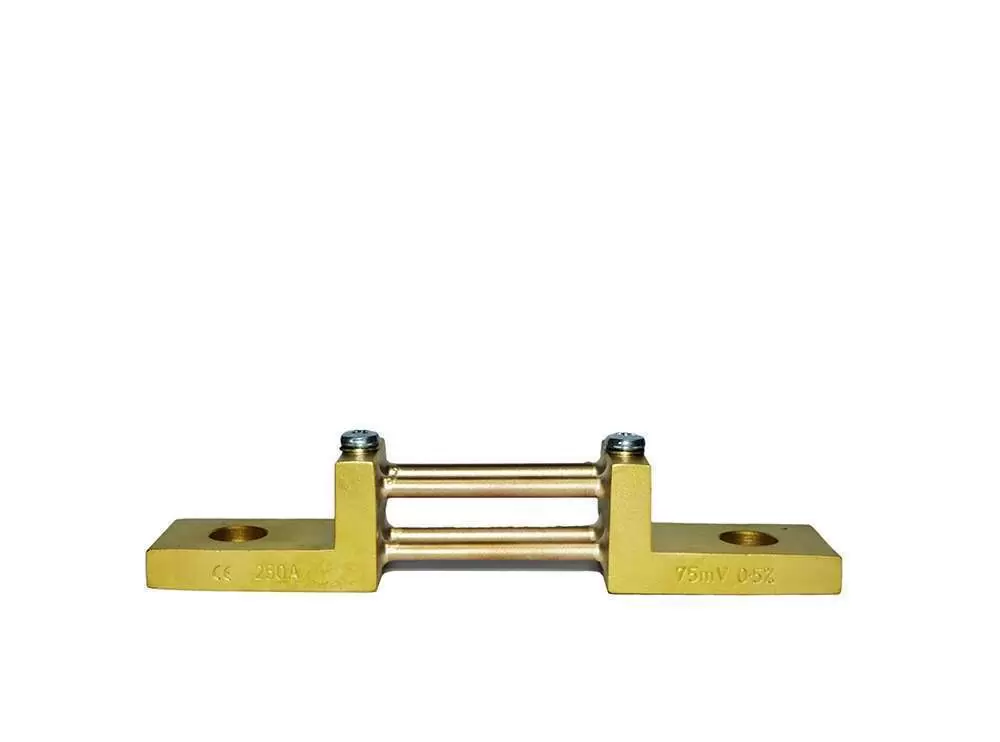

ZIEGLER DC SHUNT 250A, 75mv, 0.5 DIN, SHUNT 75
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
CURRENT RATING : 250A
ACCURACY CLASS : OPTIONAL
SECONDARY CURRENT : 75mV
PRODUCT WARRANTY : 12 MONTHS
HS Code : 9030 8990
Lead Time : 3 - 4 WEEKS
VIEW MORE PRODUCT DETAILS
Related Products
-
FOR 10PCS ORDER
PANEL BUZZER 24VDC CBZ-10DC36.00 AEDAED 85.00 -
OLD PART NUMBER 28941
SCHNEIDER ELECTRIC, INS 40...160, EXTENDED ROTARY HANDLE BLA...AED 96.00
| Product or Component Type | Shunt |
| Standard | IEC 51/DIN |
| Application | DC Shunts convert high value current in DC circuits into proportional voltage drop which can be connected to DC meters to measure the current. |
| Product Features | High conductivity Brass / Copper Base material polycarbonate, black, self extinguishing to UL94V0 |
| Accuracy Class | 1, 0.5, 0.2 ( Optional ) |
| Ambient Temperature | -25°C ~ +70°C |
| Mounting | Din mounting |
| Warranty | 12 Months |
Specifications
| Brand | ZIEGLER |
| Model Number | SHUNT 75 |
| CURRENT RATING | 250A |
| ACCURACY CLASS | OPTIONAL |
| SECONDARY CURRENT | 75mV |
| PRODUCT WARRANTY | 12 MONTHS |
| Lead Time | 3 - 4 WEEKS |
