HIMEL AMMETER EQ72 400/5A x2 IP52 90DEG CL-1.5, H72TA400FHG

Now: AED 20.00 (Inclusive of VAT)

Qty:

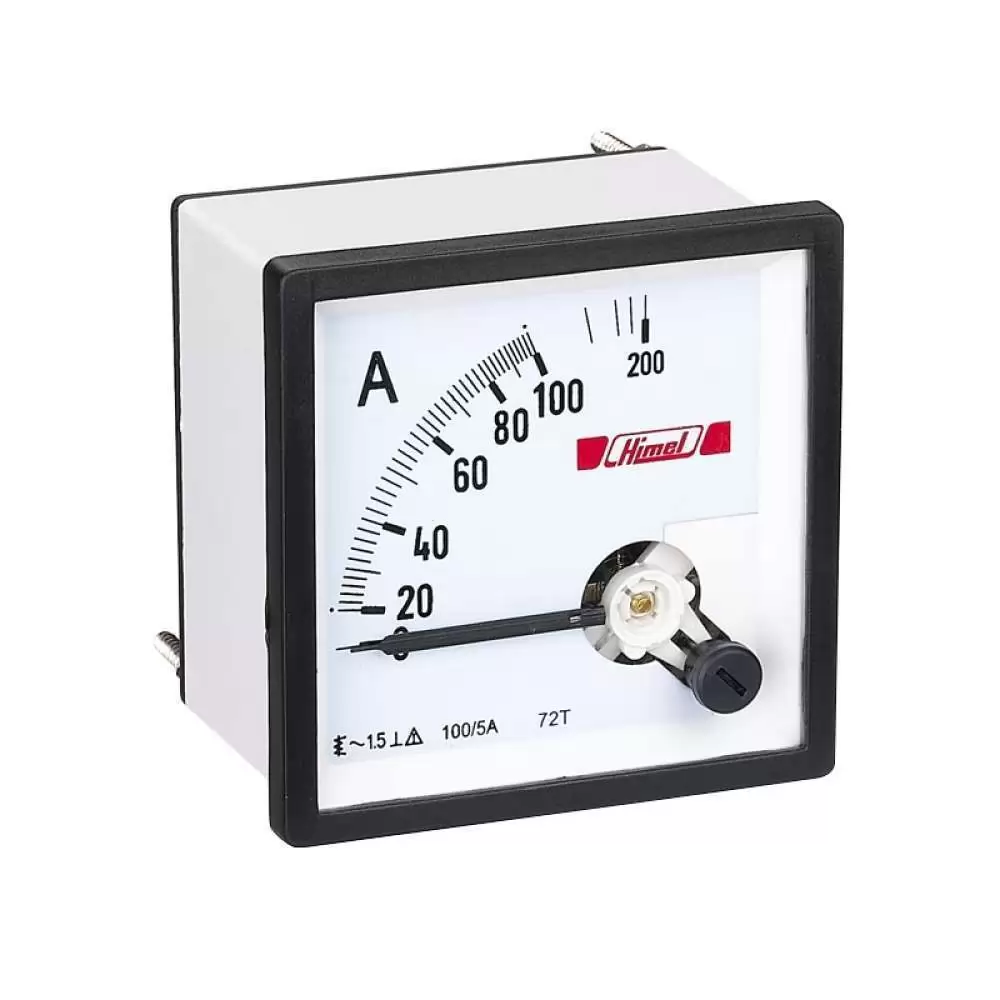

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.

CUT OUT SIZE : 72mm
SCALE VALUE : 400A
SECONDARY CURRENT : 5A
CURRENT TYPE : AC
METER ACCURACY : CLASS 1.5
PRODUCT WARRANTY : 12 MONTHS
HS Code : 9028 3000
Lead Time : 2-4 WORKING DAYS
VIEW MORE PRODUCT DETAILS

2 year warranty
100% Guaranteed Warranty

Download Product Catalogue

Free Shipping Across UAE
When you spend above 699 AED

100% Genuine Products
Sourced from Trusted Independent Suppliers

H72 & H96 Series Panel Meter

Product or component type

:Analogue measuring instrument

Standard :

: IEC 60051

Measurement Parameters :

: Ampere, Voltage, Frequency & Power factor

Function:

H72T/H72L applies to measure the current, voltage ,frequency or power factor in the AC circuit
H72C applies to measure the current or voltage in the DC circuit
Mainly be used as an indicating instrument for high or low-voltage switch cabinet, power supply cabinet, control cabinet and other electric-control facilities in the AC transmission circuit system

Cut out size

: 72mm & 96mm

Ingress protection

: IP42

Ambient temperature

: -5°C ~ +50°C

Mounting

: Panel mounting

Warranty

: 24 months

Note : Please refer technical data sheet for more information about the product.

Specifications

BrandHIMEL
Model NumberH72TA400FHG
CUT OUT SIZE 72mm
SCALE VALUE 400A
SECONDARY CURRENT 5A
CURRENT TYPE AC
METER ACCURACY CLASS 1.5
PRODUCT WARRANTY 12 MONTHS
Lead Time 2-4 WORKING DAYS
Warranty 2 year warranty
