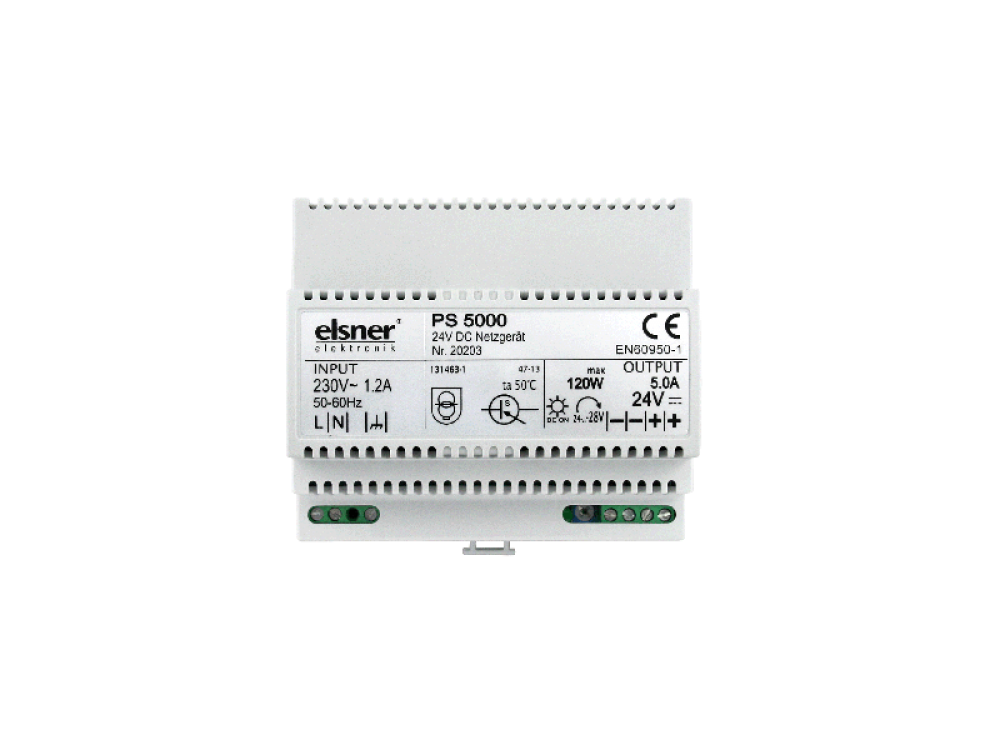

ELSNER KNX POWER SUPPLY UNITS 230 VAC TO 24VDC 5A 120W PS5000 20203
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
PROTOCOL : KNX
BODY MATERIAL : PLASTIC
INPUT VOLTAGE : 230VAC
RELATIVE HUMIDITY : 5...95% RH, avoid bedewing
OPERATING TEMPERATURE : -10°C to 50°C
IP RATING : IP20
HS Code :
Lead Time : 10-15 DAYS
VIEW MORE PRODUCT DETAILS
Related Products
PS5000
24 V DC Power Supply Unit, max. 120 W / 5 A
The PS5000 24 V power supply converts 230 V AC into 24 V DC and thus delivers the supply voltage for 24 V DC devices. Due to the high stability the device is also suitable for difficult loads such as drives.
Power supply with 230 V AC or 275-350 V DC input voltage and 24-28 V DC output voltage
FUNCTIONS
- Input voltage 230 V AC or 275-350 V DC
- Output voltage can be set between 24 and 28 V DC
- Output voltage remains constant in the event of mains voltage fluctuations and load variations of 0-100% within a tolerance of ± 3%
- No minimum load required, output voltage remains stable in the load range of 0-100%
- No load running test
- Maximum constant current is also maintained in the event of overload and short circuit, without the device switching off
- LED for displaying the operational status (lights if voltage is on at the output)
TECHNICAL DATA
| Housing | Plastic |
| Colour | Grey |
| Assembly | Series installation on mounting rail |
| Protection category | IP 20 |
| Protection class | II |
| Norms | Safety EN60950, EN61558-1, UL1950, UL508, EMV EN55022/B, EN61000-4 EN55022/B |
| Dimensions | approx. 108 x 95 x 69 (W x H x D, mm), 6 modules |
| Minimum installation gap | 40 mm above and below |
| Weight | approx. 360 g |
| Ambient temperature | Operation: -10…+50°C, storage: -40...+85°C |
| Ambient humidity | max. 95% RH, avoid condensation |
| Input voltage | 230 V AC ±15% / 50-60Hz or 275-350 V DC. |
| Power consumption input | approx. 1.4 W at 24 V output voltage, approx. 1.6 W at 28 V output voltage, each at 230 V AC input voltage. |
| Output | 24 to -28 V DC,variable. max. 5 A, 120 W |
| Efficiency | > 90% (230 V) |
| Minimum separation between input and output cables | 34 mm |
Specifications
| Brand | ELSNER |
| Model Number | ELSNER PS5000 20203 |
| PROTOCOL | KNX |
| BODY MATERIAL | PLASTIC |
| INPUT VOLTAGE | 230VAC |
| RELATIVE HUMIDITY | 5...95% RH, avoid bedewing |
| OPERATING TEMPERATURE | -10°C to 50°C |
| IP RATING | IP20 |
| Lead Time | 10-15 DAYS |
