ALFANAR Modular Distribution Board DB 16 Modules 4 Row Flush Type RAL 7035 Grey 45-416MS00F

Now: AED 368.00 (Inclusive of VAT)

Qty:

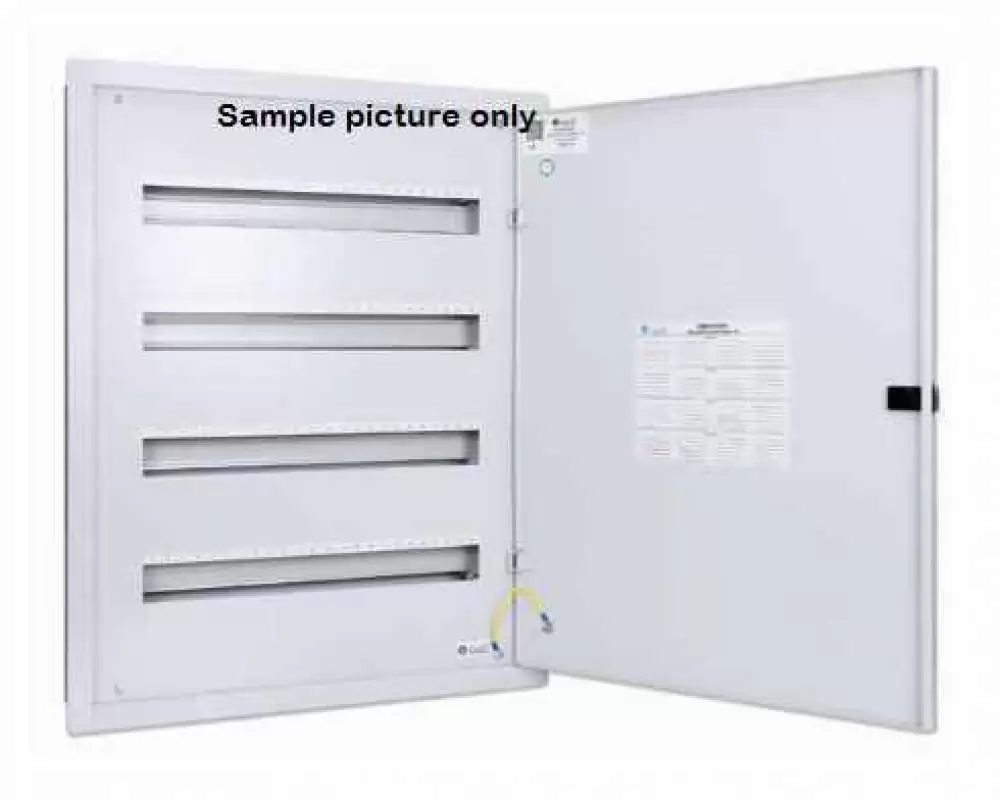

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.

MATERIAL : High Quality Electro-Galvanized Steel Sheet
MODULAR : 16 MODULAR
ROWS : 4
TYPE : FLUSH
DOOR : SINGLE
COLOUR : RAL 7035
HS Code :
Lead Time :
VIEW MORE PRODUCT DETAILS

Download Product Catalogue

Free Shipping Across UAE
When you spend above 699 AED

100% Genuine Products
Sourced from Trusted Independent Suppliers

ALFANAR Modular Distribution Board DB 16 Modules 4 Row Flush Type RAL 7035 Grey 45-416MS00F

Special Note : Minimum Order Value applicable, Delivery limited to restricted areas only (Confirm by whatsapp or email), Additional discount may apply for Dhs. 3000.00 or above value orders.

APPLICATIONS

alfanar Modular Enclosures are standard products suitable for mounting various types of din rail mounted LV components. They are used for a safe and reliable distribution and control of power.

Available up to 6 rows

Door earthing provided to ensure earth continuity.

Adjustable painted mounting assembly made of electro-galvanized Steel

Fine texture polyester powder coated in RAL 7035 light grey colour & RAL 9010 white.

Each row is capable of holding up to 24 din rail modules.


SPECIFICATIONS:

• Made of high quality electro-galvanized steel sheet of thickness up to 1.2mm

• Fine texture polyester powder coated in RAL 7035 light grey color &  RAL 9010 White

• Complies with IEC 60529 standards

• Degree of protection IP41


FEATURES:

• Press-formed Dead Front Cover (DFC) and door for better strength and aesthetic look*

• Hemming on box edges for additional mechanical strength.

• Circuit numbers are embossed on the DFC**

• Knockouts on both top and bottom sides of the enclosure

• Adjustable painted rail mounting assembly made of electro-galvanized steel

• Spacious enclosures facilitating ease of wiring and efficient heat dissipation

• Easily removable hinges, ideal for changing the door-opening direction

• Available in Flush and Surface mounting types

• Available up to 6 rows and each row can have up to 24 modules***

• Customized powder coating colors and textures upon request

• C-bend on hinge door for additional stiffness and strength****


Specifications

BrandALFANAR
Model NumberALFANAR 45-416MS00F
MATERIAL High Quality Electro-Galvanized Steel Sheet
MODULAR 16 MODULAR
ROWS 4
TYPE FLUSH
DOOR SINGLE
COLOUR RAL 7035
THICKNESS 1.2mm
IP RATING IP41
STANDARD IEC 60529
