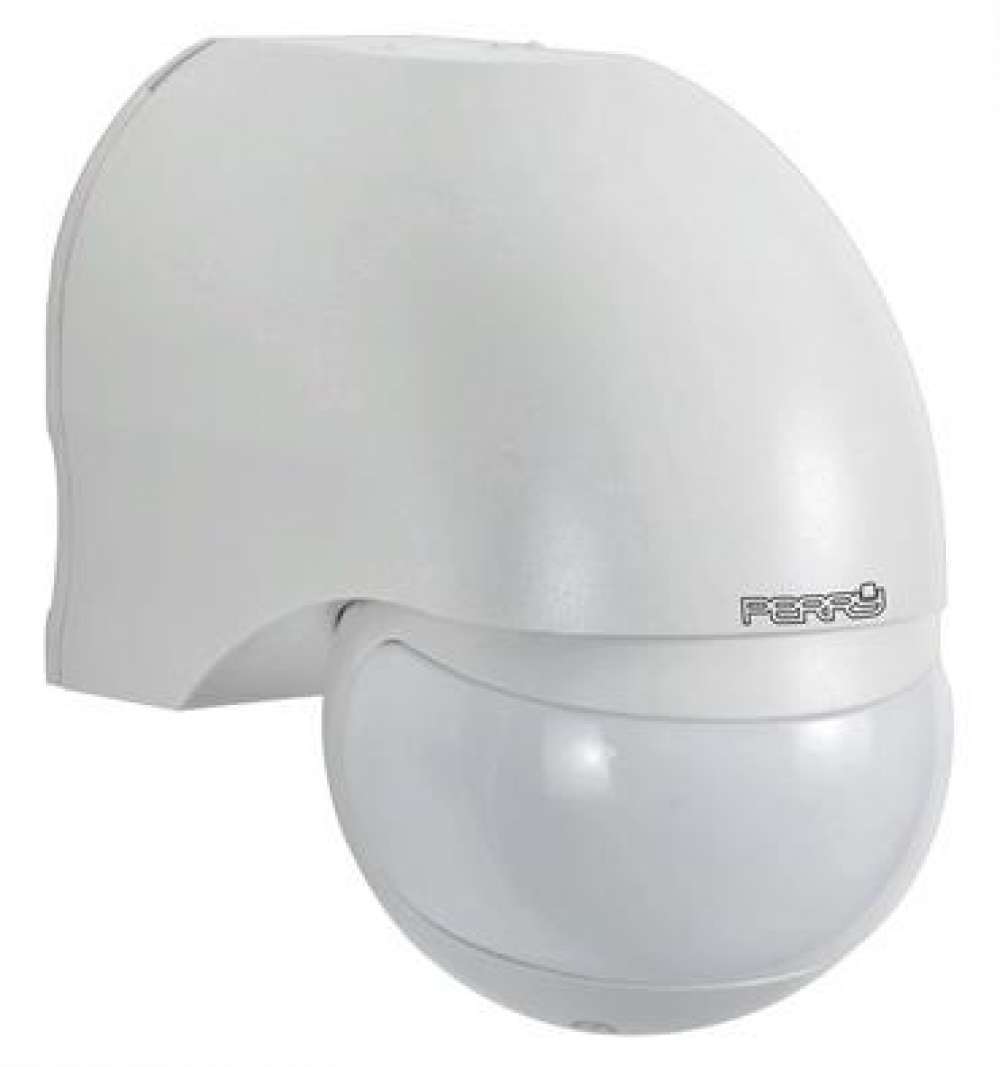

Perry Electric Infrared Red Motion Sensor Wall Mounted 180 1SP SP010
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
SENSOR TYPE : MOTION DETECTOR
SENSOR TECHNOLOGY : Passive Infrared
MAIN POWER SUPPLY : 230 V / 50 - 60Hz
APPLICATIONS, AREA : PASSAGE AREAS
DETECTION ANGLE : 180°
REACH : 3 - 12m
HS Code :
Lead Time : 5-7 Days
VIEW MORE PRODUCT DETAILS
Related Products
Perry Electric1SP SP010
Wall-mounted infrared motion detector - IP 44 white color
TECHNICAL SPECIFICATIONS
- Wall mounted
- Power supply 230V a.c. 50 Hz
- Maximum lighting load:
- incandescent lamps 1.000W
- fluorescent lamps (uncompensated) 400W
- fluorescent lamps (compensated in parallel) 220W
- CFL / LED lamps (230V) 7W ÷ 23W max 8 lamps
- “ZERO CROSSING” on relay - Contact closure with zero load to increase the connectable load and relay endurance
- Protection degree IP 44
- Degree of pollution normal
- Detection angle 180°
- Detection distance max 12 m
- Head swivelling angle 70° horizontal – 35° vertical
- Adjustment of deactivation delay 5” - 12’
- Lux adjustment from 1 to 1.000 LUX
- Sensitivity adjustment 3 – 12m
- Insulation class II
- Operating temperature from -20°C to +40°C
- CE marking reference standard LVD/EMC EN60669-2-1
- Dimensions (L x W x H) 65 x 88 x 95 mm
Specifications
| Brand | PERRY ELECTRIC |
| Model Number | Perry Electric 1SP SP010 |
| SENSOR TYPE | MOTION DETECTOR |
| SENSOR TECHNOLOGY | Passive Infrared |
| MAIN POWER SUPPLY | 230 V / 50 - 60Hz |
| APPLICATIONS, AREA | PASSAGE AREAS |
| DETECTION ANGLE | 180° |
| REACH | 3 - 12m |
| INSTALLATION | SURFACE/WALL |
| IP RATING | IP44 |
| Part No. EAN | 1SP SP010 |
| Lead Time | 5-7 Days |
| Warranty | 1 year warranty |
