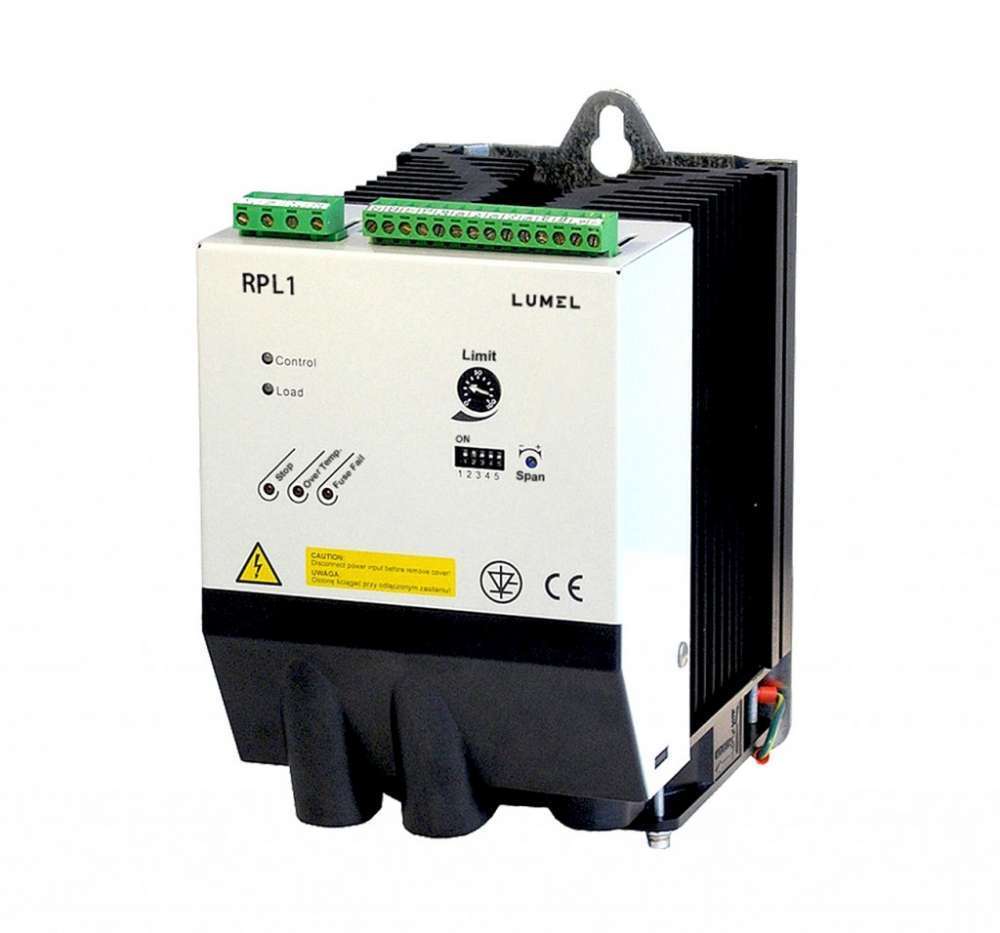

LUMEL Single Phase Power Controller 70A RPL1-1-3-1-00-E-0
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
CURRENT RANGE : 70A
OPERATING TEMPERATURE : ambient: 0 .. 40°C
RELATIVE HUMIDITY : < 90 %
POLLUTION GRADE : 2
SUPPLY VOLTAGE : 195 .. 230 .. 253 V a.c
IP RATING : IP20
HS Code :
Lead Time : 3 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products
-
EQUIVALENT FOR LUMEL PD10 INTERFACE CONVERTER
LUMEL, PD20, RS-485 TO USB INTERFACE CONVERTER, BAUD RATE UP...AED 375.00 -
OLD PART NUMBER ABL8REM24050
SCHNEIDER ELECTRIC, POWER SUPPLY, 1 PHASE, I/P: 100-240V AC,...AED 375.00
LUMEL Single Phase Power Controller 70A RPL1-1-3-1-00-E-0
The area of RPL1 application includes:
- electric furnaces and drying structures, especially industrial furnaces and tunnel cap, furnaces for annealing and brazing, and founder crucible furnaces, drying ovens, furnaces with quenching in salt baths;
- mechanical engineering equipment, aggregates and extruders for plastics processing, winding machines and tempering springs, spot welding and linear;
- production of glass and glazing, plant and equipment for drying in the infrared and ultraviolet, vats for melting glass and heating trays for forming glass furnaces;
- chemical and petroleum industry; radiators lining piping, wiring warming
- For power control of resistive and resistive load (transformer connected to resistive load or to rectifier circuit).
- Control mode: on/off (similar to solid state relay), pulse, phase.
- Amplification of input control signal (SPAN).
- Limitation of load current.
- Overload protection.
- Signalization of exceeding the maximum temperature of radiator.
- Control of 3-phase load (requires two RPL1 controller units).
- External dimensions:
- 135 x 201 x 199 mm
- 135 x 231 x 199 mm (execution with fan).
Specifications
| Brand | LUMEL |
| Model Number | LUMEL RPL1-1-3-1-00-E-0 |
| CURRENT RANGE | 70A |
| OPERATING TEMPERATURE | ambient: 0 .. 40°C |
| RELATIVE HUMIDITY | < 90 % |
| POLLUTION GRADE | 2 |
| SUPPLY VOLTAGE | 195 .. 230 .. 253 V a.c |
| IP RATING | IP20 |
| RATED FREQUENCY | 50 Hz |
| Lead Time | 3 - 4 Weeks |
| Warranty | 2 year warranty |
