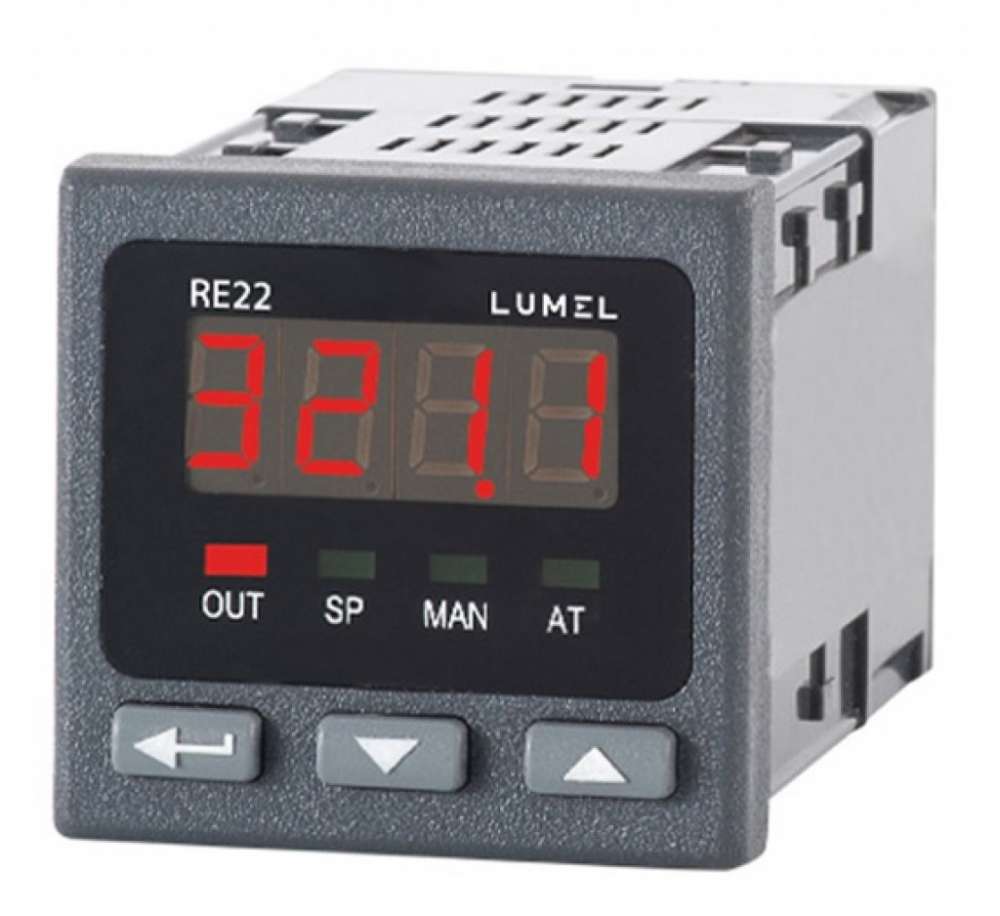

LUMEL Temperature Controller PID , 1 Output, Programmable input RE22
Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.
OUTPUT TYPE : RELAY or BINARY 0/5V
SUPPLY VOLTAGE : 230; 110; 24 V a.c. +/- 10%
SIZE : 48 X 48 X 93 Mm
NUMBER OF OUTPUTS : 1
MINIMUM TEMPERATURE SETTING : 0°C
MAXIMUM TEMPERATURE SETTING : +50°C
HS Code :
Lead Time : 3 - 4 Weeks
VIEW MORE PRODUCT DETAILS
Related Products
-
OLD PART NUMBER ABL1REM12050
SCHNEIDER ELECTRIC, POWER SUPPLY, 1 PHASE, I/P: 100-240V AC,...AED 325.00 -
OLD PART NUMBER ATV312HU22N4
SCHNEIDER ELECTRIC, VARIABLE SPEED DRIVE, COMPACT, ATV320, 2...AED 1,937.00
Controller RE22 type is destined to control temperature in furnaces, dryers, injection moulding machines and others.
- input: universal (thermocouples, resistance thermometer, analog standard signals),
- control algorythm: on/off, with histerezis, PID,
- output: relay, binary 0/6V,
- manual setting of PID parameters or by means of the autoadaptation,
- limitation of set point change setting,
- supply: 230 V a.c., 110 V a.c., 24 V a.c.,
- external dimensions: 48 x 48 x 93mm
Specifications
| Brand | LUMEL |
| Model Number | LUMEL RE22 |
| OUTPUT TYPE | RELAY or BINARY 0/5V |
| SUPPLY VOLTAGE | 230; 110; 24 V a.c. +/- 10% |
| SIZE | 48 X 48 X 93 Mm |
| NUMBER OF OUTPUTS | 1 |
| MINIMUM TEMPERATURE SETTING | 0°C |
| MAXIMUM TEMPERATURE SETTING | +50°C |
| TEMPERATURE RANGE | -199 → +850 (PT100) °C, -199 → +850 (PT1000) °C, -100 → +1200 (Type J Thermocouple) °C, -100 → +1300 (Type N Thermocouple) °C, -100 → +1372 (Type K Thermocouple) °C, -100 → +400 (Type T Therm |
| DISPLAY TYPE | DIGITAL |
| IP RATING | IP20, IP65 |
| MOUNTING TYPE | PANEL MOUNT |
| INPUT TYPE | PT100, PT1000, Type B Thermocouple, Type E Thermocouple, Type J Thermocouple, Type K Thermocouple, Type L Thermocouple, Type N Thermocouple, Type R Thermocouple, Type S Thermocouple, Type T T |
| Lead Time | 3 - 4 Weeks |
| Warranty | 2 year warranty |
