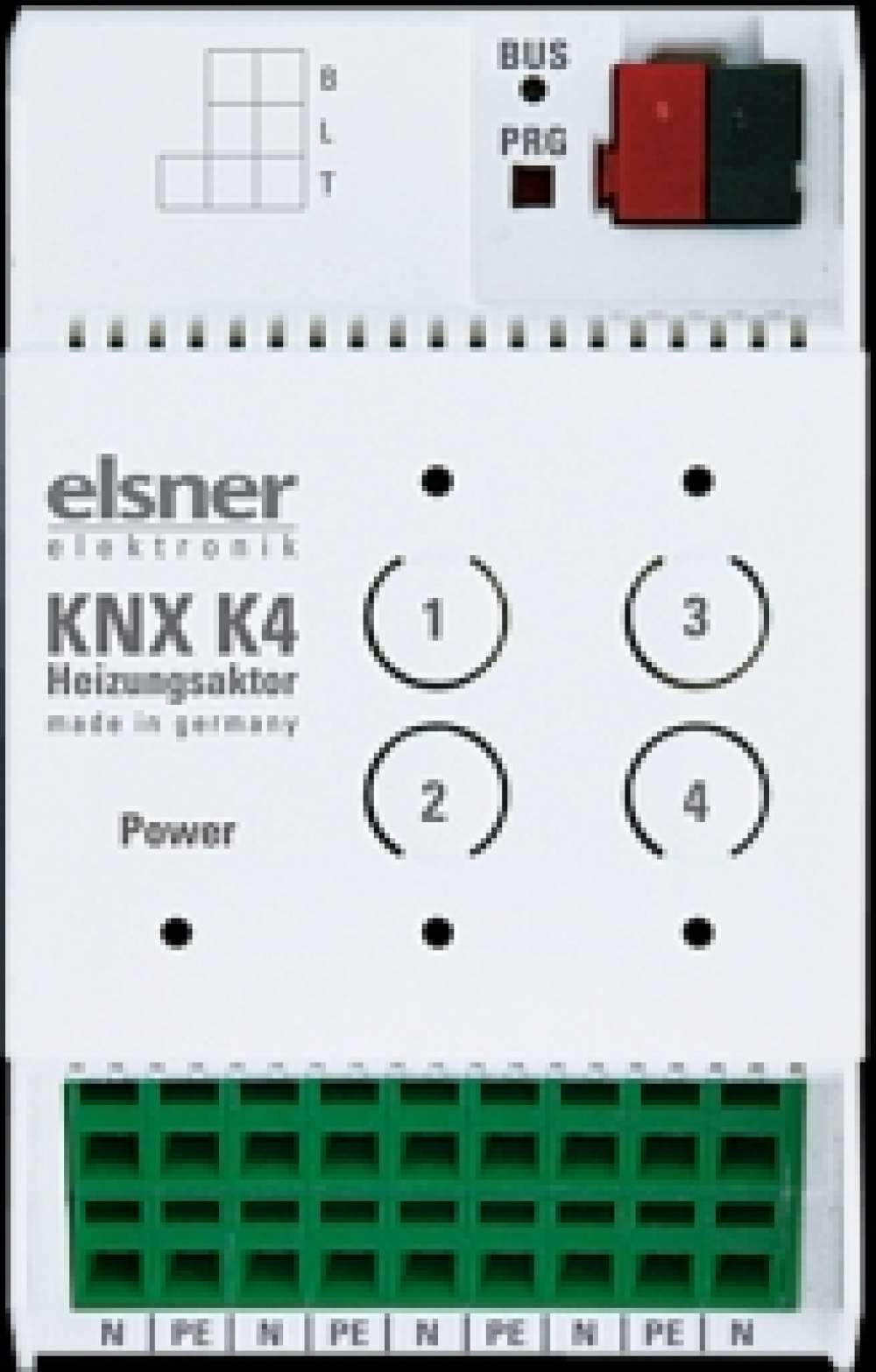

ELSNER KNX HEATING COOLING ACTUATORS 4 OUTPUTS KNX K4 N 70320

Was: AED 1,020.00 Now: AED 890.00 (Inclusive of VAT)

Qty:

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.

PROTOCOL : KNX
IP RATING : IP20
RELATIVE HUMIDITY : < 95%
OPERATING TEMPERATURE : -10°C to 70°C
HS Code :
Lead Time : 10-15 DAYS
VIEW MORE PRODUCT DETAILS

Download Product Catalogue

Free Shipping Across UAE
When you spend above 699 AED

100% Genuine Products
Sourced from Trusted Independent Suppliers








KNX K

KNX Heating/Cooling Actuators

The KNX K actuators have got internal temperature controllers and output channels for controlling heating or cooling systems. The temperature controllers can control both the outputs on the KNX K and other climate control system on the KNX Bus.
In automatic mode, the temperature controllers are set at nominal temperatures for different modes. This way, it is easy to switch between the modes, comfort, standby, eco and building protection. The switch is made via an object e. g. via a manual switch, time switch or sensor switch outputs in the KNX-System.
The buttons on the device allow for direct manual switching of the connected systems. LEDs show whether the output channel was manually operated or is running in an automatic mode.

Models:

N° 70320 KNX K4, 4 outputs
N° 70321 KNX K8, 8 outputs

KNX 4:

  • 4 internal, independent temperature regulators with automatic controls for the heating and cooling controls (one/two step heating and cooling)
  • 4 output channels (230 V AC, 8 Watt per output) with pulse width modulation control (PWM) for actuators
  • Keypad field 4 buttons and status LEDs


HousingPlastic
ColourWhite
MountingSeries installation on mounting rail
Protection categoryIP 20
Ambient temperatureOperation -20…+70°C, storage -55…+90°C
Ambient humiditymax. 95% RH, avoid condensation
Poweron bus: 10 mA
Data outputKNX +/- bus connector terminal

KNX K4

Dimensionsapprox. 53 x 88 x 60 (W x H x D, mm), 3 modules
Weightapprox. 110 g
Operating voltageKNX bus voltage
Outputs4 x 230 V (OUT/N), not short-circuit-proof.
When connectiong one consumer load per separate channel (1 to 4):
Max. load for continuous operation: 8 W per channel
Max. switch-on current: 1.1 A per channel
Observe the specifications in the data sheet of the consumer load.
Communication objects125

KNX K8

Dimensionsapprox. 107 x 88 x 60 (W x H x D, mm), 6 modules
Weightapprox. 270 g
Operating voltage230V AC, 50 Hz
Power consumptionmax. 2 W
Outputs8 x 230 V (OUT/N), not short-circuit-proof.
When connectiong one consumer load per separate channel
(1 to 8):
Max. load for continuous operation: 8 W per channel
Max. switch-on current: 1.1 A per channel
Observe the specifications in the data sheet of the consumer load.
Communication objects249



Specifications

BrandELSNER
Model NumberELSNER KNX K4 N 70320
PROTOCOL KNX
IP RATING IP20
RELATIVE HUMIDITY < 95%
OPERATING TEMPERATURE -10°C to 70°C
Lead Time 10-15 DAYS
