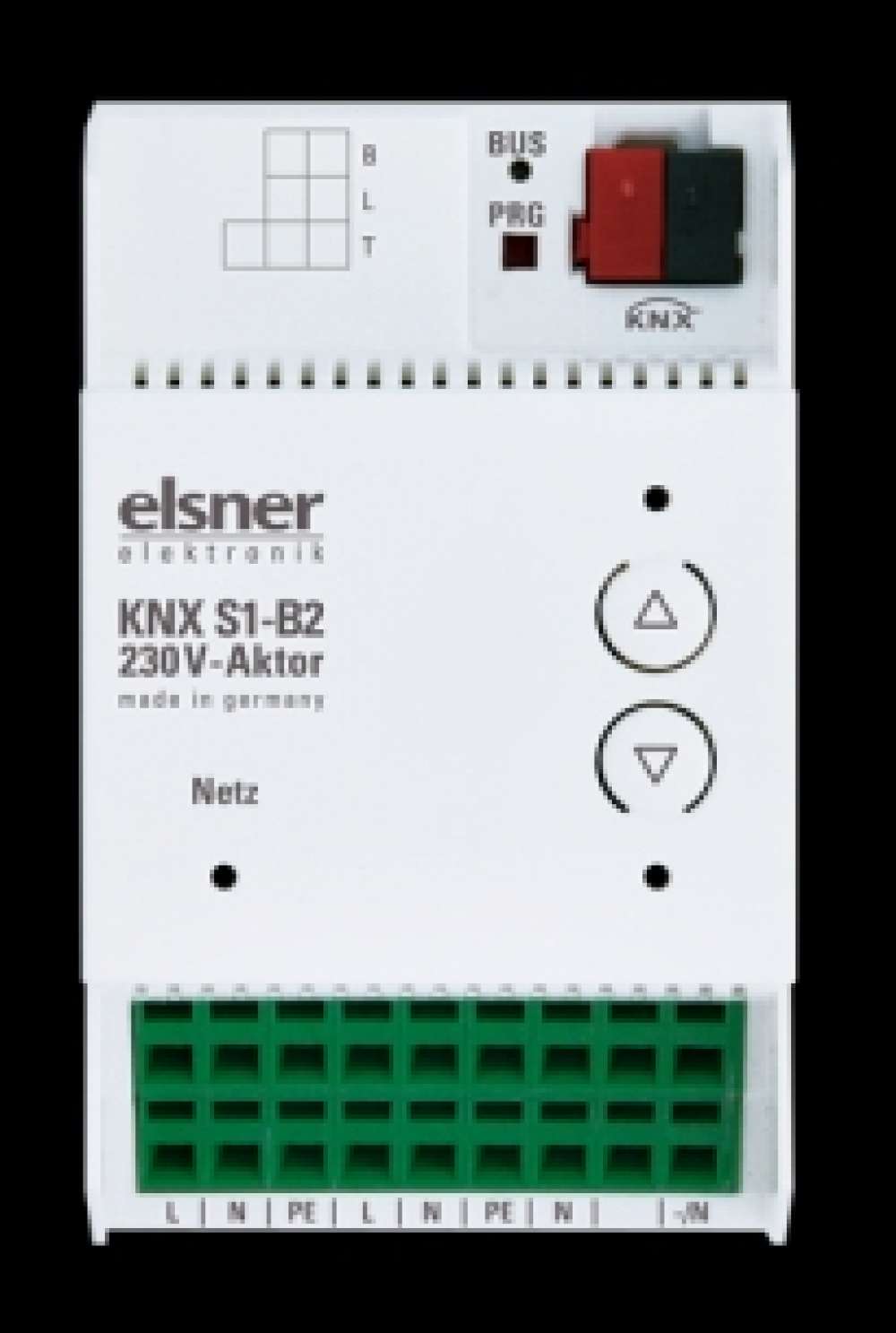

ELSNER KNX ACTUATOR WITH 1 MULTIFUNCTIONAL OUTPUT AND 2 BINARY INPUTS KNX S1-B2 230V N 70532

Was: AED 1,215.00 Now: AED 1,073.00 (Inclusive of VAT)

Qty:

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.

PROTOCOL : KNX
IP RATING : IP20
RELATIVE HUMIDITY : < 95%
OPERATING TEMPERATURE : -10C to 50C
VOLTAGE RATING : 230 VAC
RATED FREQUENCY : 50 Hz
HS Code :
Lead Time : 10-15 DAYS
VIEW MORE PRODUCT DETAILS

Download Product Catalogue

Free Shipping Across UAE
When you spend above 699 AED

100% Genuine Products
Sourced from Trusted Independent Suppliers







KNX S4-B10 | KNX S2-B6 | KNX S1-B2 230 V

Actuators with multifunctional outputs and inputs

Successor for 70137, 70180, 70181

The Actuators KNX S4-B10, KNX S2-B6 and KNX S1-B2 230 V with integrated facade control have multifunctional outputs, pairs of buttons and monitoring LEDs. Each of the multifunctional outputs can connect to either a drive with Up/Down control (blinds, awnings, shutters, windows) or two switchable devices (On/Off for light and ventilation). The connected drives and devices can be operated directly on the actuator
or via connected hand switches.
The automation can be specified externally or internally. Internally, there are numerous options available for blocking, locking (e.g. master-slave) and priority definition (e.g. manual-automatic). Scenes can be saved and called up via the bus (scene control with 16 scenes per drive).
Binary inputs can be used either for direct operation (e.g. hand switches) or as bus switches (or also for e.g. alarm notifications). The desired behaviour can be defined precisely through selection of the response times in Standard, Comfort or Deadman mode.

Models:
N 70530 KNX S4-B10 230 V, 4 multifunctional outputs, 10 binary inputs
N 70531 KNX S2-B6 230 V, 2 multifunctional outputs, 6 binary inputs
N 70532 KNX S1-B2 230 V, 1 multifunctional output, 2 binary inputs


HousingPlastic
ColourWhite
AssemblySeries installation on mounting rails
Protection CategoryIP 20
Ambient temperatureOperation -20+70C, Storage -55+90C
Ambient humiditymax. 95% rF, avoid condensation
Operating voltage230 V AC, 50 Hz
Currenton bus: 10 mA
Minimum current for runtime measurementAC effective 200 mA
Cable length binary inputsmax. 50 m
Data outputKNX +/- Bus connector terminal

KNX S1-B2 230 V:

Dimensionsapprox. 53 x 88 x 60 (W H D, mm),
3 width units
Weightapprox. 170 g
Power consumptionOperation max. approx. 1.2 W
Output1 Output
with 2 connections for drive Up/Down or 2 devices, 230 V (PE/N/1/2),
in total max. 8 A and max. 4 A per connection
Inputs2 x binary inputs, universal voltage
(6...80V DC, 6...240 V AC)
Communication objects141

Specifications

BrandELSNER
Model NumberELSNER KNX S1-B2 230V N 70532
PROTOCOL KNX
IP RATING IP20
RELATIVE HUMIDITY < 95%
OPERATING TEMPERATURE -10C to 50C
VOLTAGE RATING 230 VAC
RATED FREQUENCY 50 Hz
Lead Time 10-15 DAYS
Weight 0.17 kg
Dimensions (W, H, L ) in cm 6 x 8.8 x 5.3
