ZIEGLER CURRENT TRANSFORMER 4000/5A CLASS 1 Zis 22.16D 30VA Busbar: 165 x 65mm, ZIS 22.16D 4000/CL1

Now: AED 325.00 (Inclusive of VAT)

Qty:

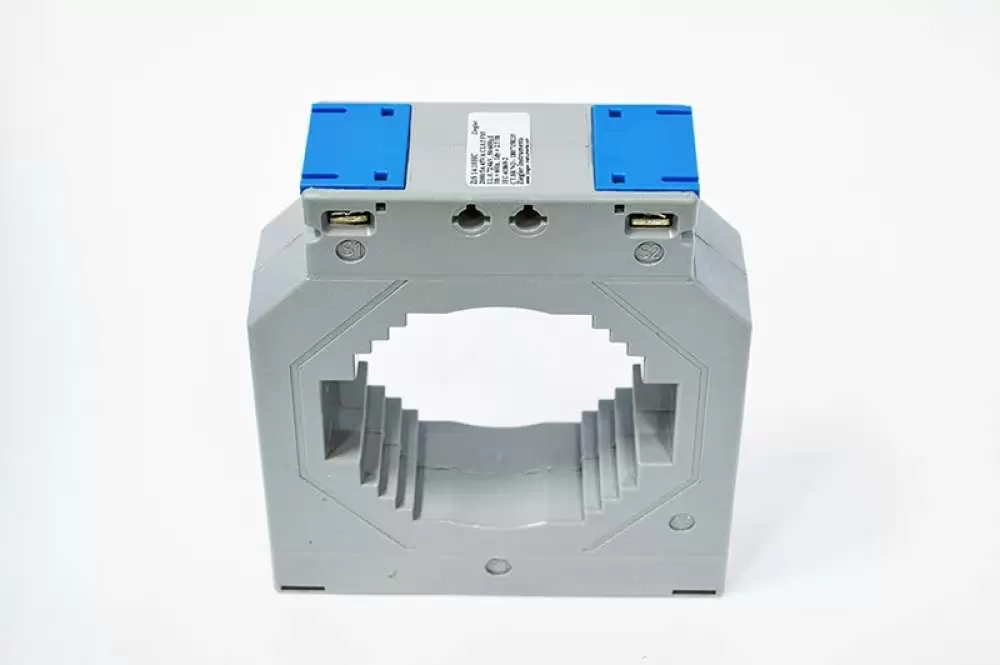

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.

PRIMARY CURRENT : 4000A
SECONDARY CURRENT : 5A
MOUNTING : BUSBAR
ACCURACY CLASS : CLASS 1
VA RATING : 30VA
PRODUCT WARRANTY : 12 MONTHS
HS Code : 8504 3100
Lead Time : 3-4 WEEKS
VIEW MORE PRODUCT DETAILS

Download Product Catalogue

Free Shipping Across UAE
When you spend above 699 AED

100% Genuine Products
Sourced from Trusted Independent Suppliers

Product or Component Type Measuring instruments
Standard IEC/EN 60044 - 1
Application Measures network current
Product FeaturesCase 10% glass filled polycarbonate, flame retardant grade classified UL 94V-0
Comprehensive measurement of class accuracy
Wide range of busbar sizes, case widths and apertures
Wire sealable terminal covers
Frequency Range 50/60 Hz
System Voltage 720V Max
Ambient Temperature -20C ~ +45C
Mounting Panel, Cable, Busbar and Din mounting
Warranty 12 Months

Specifications

BrandZIEGLER
Model Number ZIS 22.16D 4000/CL1
PRIMARY CURRENT 4000A
SECONDARY CURRENT 5A
MOUNTING BUSBAR
ACCURACY CLASS CLASS 1
VA RATING 30VA
PRODUCT WARRANTY 12 MONTHS
Lead Time 3-4 WEEKS
Weight 4.00 kg
