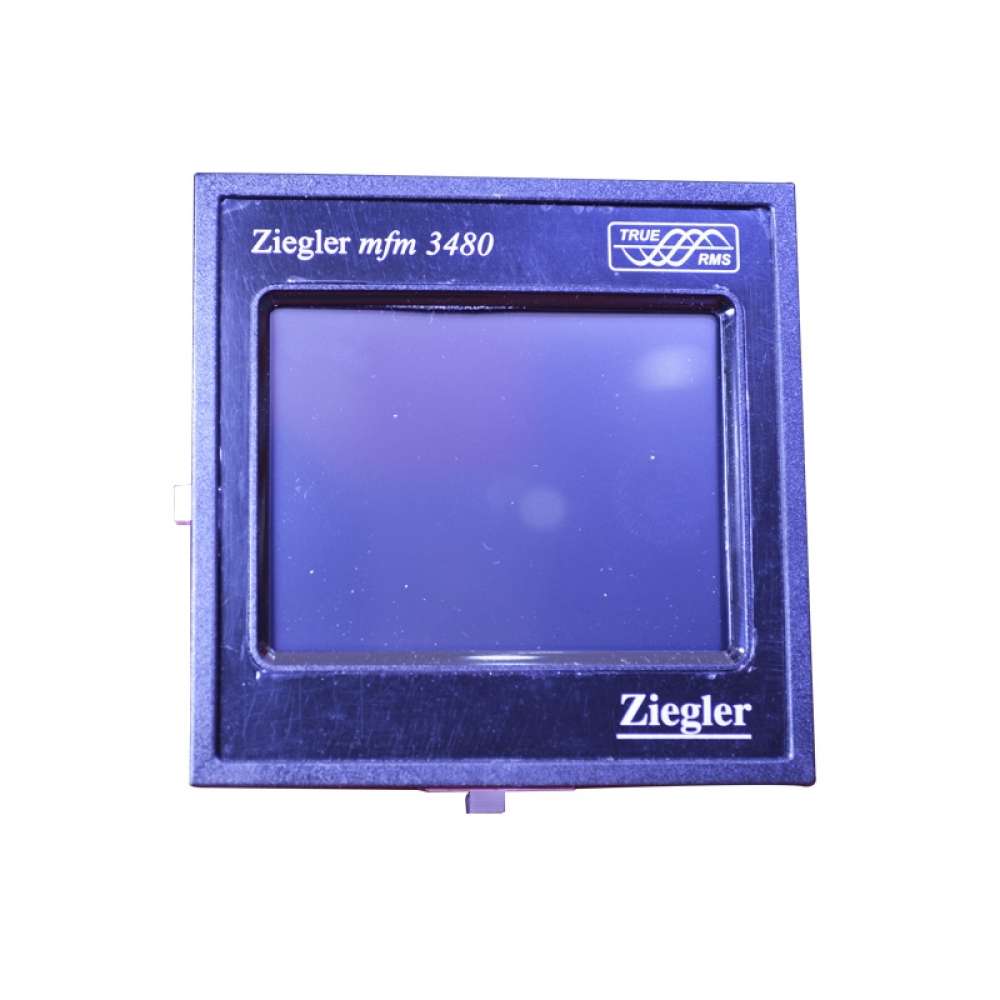

ZIEGLER DIGITAL PANEL METER - MFM3480

Now: AED 695.14 (Inclusive of VAT)

Qty:

Note: Image for illustrative purpose only, original product will be delivered as per your order specification on the item description, please refer technical data sheet for more information about the product.

PARAMETERS MEASURED : MULTIMETER
TYPE : DIGITAL
DISPLAY : LED
PRODUCT WARRANTY : 12 MONTHS
HS Code : 9030 3310
Lead Time : 2-4 WORKING DAYS
VIEW MORE PRODUCT DETAILS

Download Product Catalogue

Free Shipping Across UAE
When you spend above 699 AED

100% Genuine Products
Sourced from Trusted Independent Suppliers

Product or component type : Digital measuring instruments
Standard : IEC 61326
Application : Measures important electrical parameters in 3 phase 4 Wire and 3 phase 3 Wire Network & replaces the multiple analog panel meters. It measures electrical parameters like AC Voltage,AC Current, Frequency, Active, Reactive, Apparent Power & many more.
Product Features : Fast & Easy Installation on panel with self clicking, On site Programmable CT/PT Ratios,
User selectable CT Secondary 1A/5A
User selectable 3ph3wire / 3ph4wire / single phase Network
Frequency Range : 45-65 Hz
Pollution degree : 2
Ambient temperature : -25C ~ +70C
Mounting : Panel mounting
Warranty : 12 months

Specifications

BrandZIEGLER
Model NumberMFM3480
PARAMETERS MEASURED MULTIMETER
TYPE DIGITAL
DISPLAY LED
PRODUCT WARRANTY 12 MONTHS
Lead Time 2-4 WORKING DAYS
Weight 0.20 kg
